LiTech Power 1S2P 3.7V Battery Pack

P/N: LP1S2P2A2AL011

  • Nominal Voltage: 3.7V
  • Nominal Capacity: 10Ah/37Wh
  • Voltage Range: 2.70V~4.20V
  • Max. Continuous Discharge Current: 2A
  • Max. Discharge Peak Current: 3A
  • Communication Protocol: /
  • Dimension: 75 x 45 x 24 mm
  • Weight: 200g ± 10g
Voltage
3.7V
Capacity
10Ah(W/ JST PHR-3 connector)

$0.00

Available on backorder

Available on backorder

x

LiTech Power Li-ion 1S2P 3.7V 10Ah Battery Pack

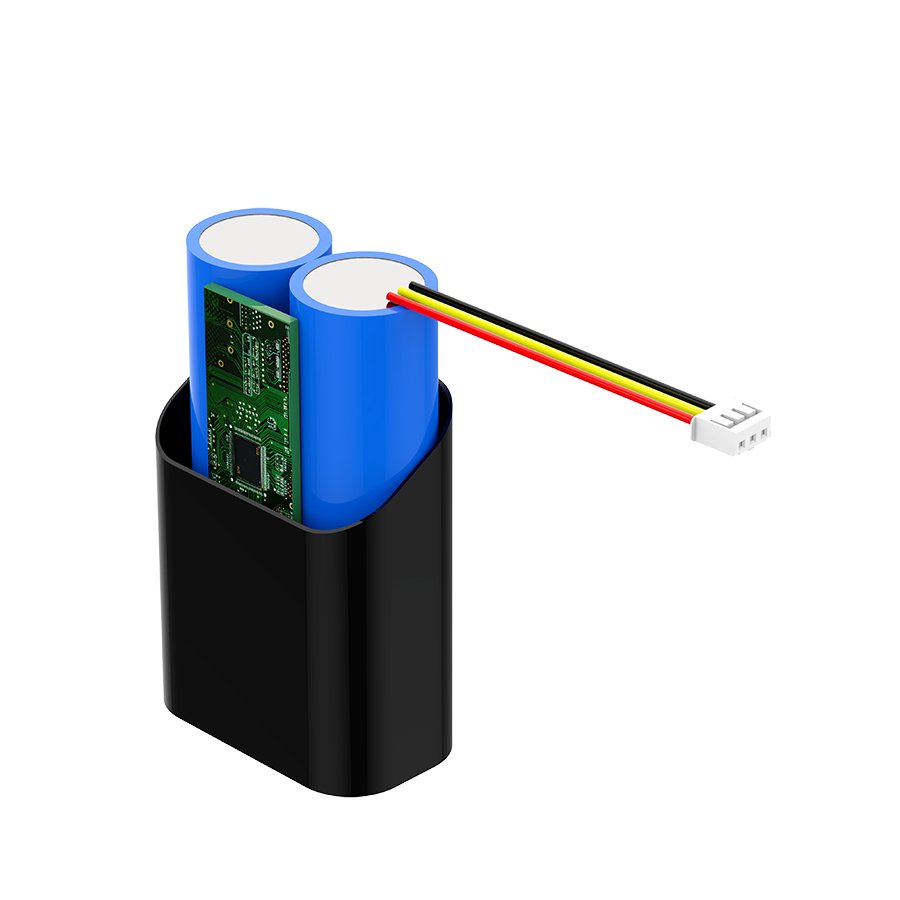

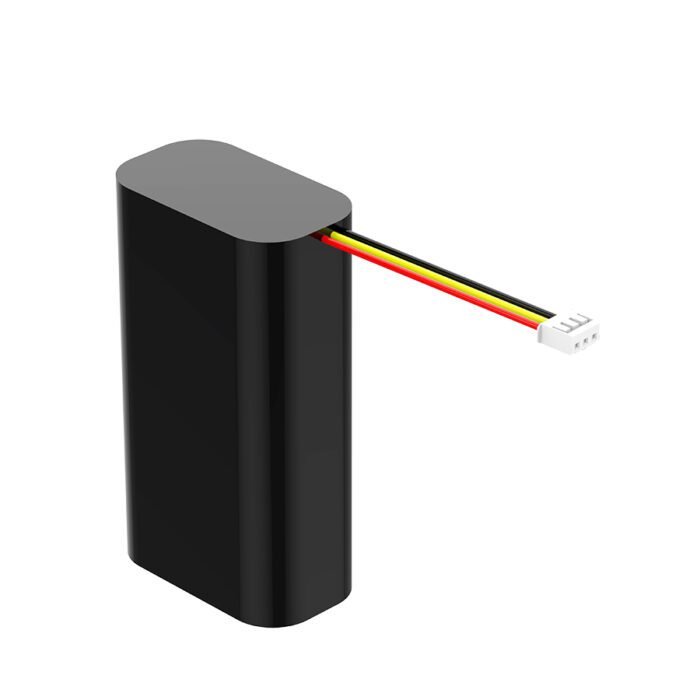

LP1S2P2A2AL011  is a 1S2P Lithium-Ion rechargeable Battery Pack with Battery Management System integrated, nominal voltage at 3.7V, rated capacity at 10.0Ah/37Wh, with 50mm long 20AWG wires for charge and discharge, terminated with JST PHR-3 connector for charge and discharge, charge & discharge from the same terminals, with PVC Shrink Wrap

It is a typically OEM battery pack customized for 3V/3.6V/3.7V applications, reach out to us if you need some modifications on current design or need a total new custom solution. LiTech develops and produces the core component BMS in-house, with a wide range of off-the-shelf BMS selection, therefore LiTech delivers new development in just a few days.

The full specification data sheet is available for reviewing on-line or downloading it from the link above.



LiTech Power makes better battery –  li-ion 3V 10Ah Battery Pack – li-ion 3.6V 10Ah battery pack – li-ion 3.7V 10Ah battery pack
