LiTech Li-ion 43.2V 20Ah 12S4P Battery Pack

P/N: LP12S4P10A100AL003

  • Nominal Voltage: 43.2V
  • Nominal Capacity: 20.Ah / 864.0Wh
  • Voltage Range: 32.4V~50.4V
  • Max. Continuous Discharge Current: 100A
  • Max. Discharge Peak Current: 150A for 3-5 seconds
  • Communication Protocol: /
  • Dimension: 172 x 130 x 74 mm
  • Weight: 3400g ± 100g
Voltage
43.2V
Capacity
20Ah(W/ Anderson SB45)

$0.00

Available on backorder

Available on backorder

x

LiTech Li-ion 43.2V 20Ah 12S4P Battery Pack

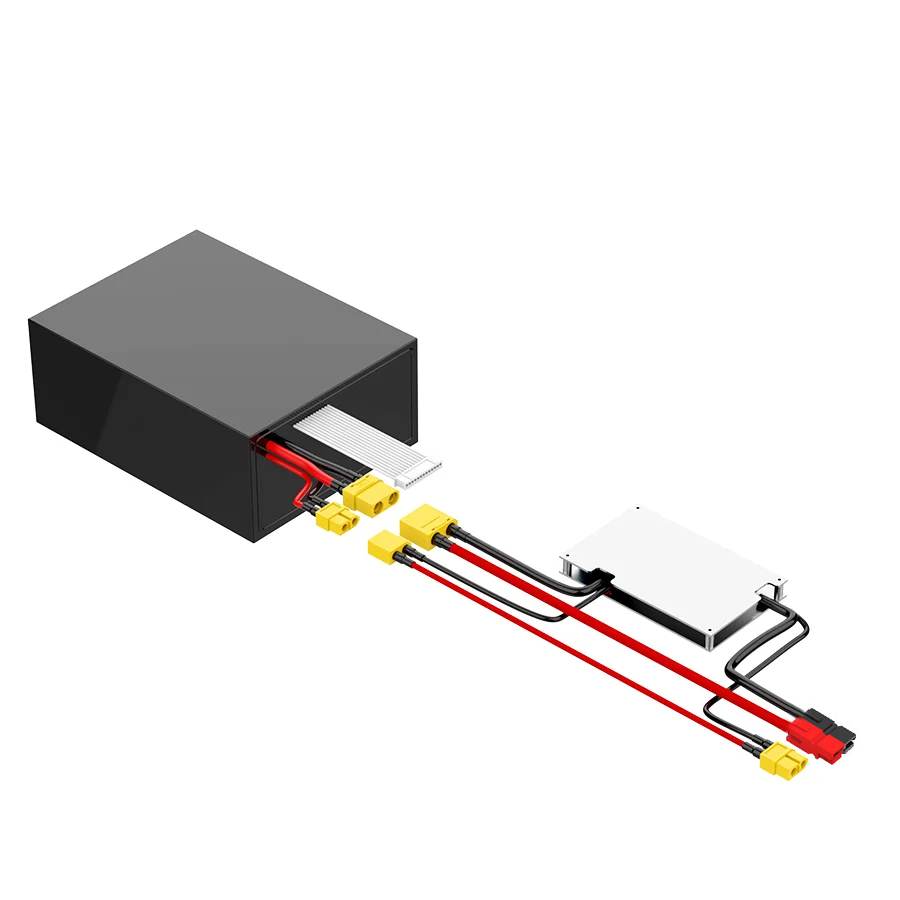

LP12S4P10A100AL003 is a 12S4P Lithium-Ion rechargeable Battery Pack with Battery Management System integrated, nominal voltage at 43.2V, rated capacity at 20.0Ah/864Wh, BMS is designed externally from the pack, pack is integrated with all matching connectors to BMS, with temp. sensor, with Anderson SB45 for discharge and with XT60 connector for Charge, with Shrink Wrap.



It is a typically OEM battery pack customized for 42V/43.2V/44.4V applications, reach out to us if you need some modifications on current design or need a total new custom solution. LiTech develops and produces the core component BMS in-house, with a wide range of off-the-shelf BMS selection, therefor LiTech delivers new development in just a few days. Thanks to its “know-how” experience and strict QC testing procedures, LiTech makes better custom batteries – li-ion batteries & lifepo4 batteries and lot batteries.

The full specification data sheet is available for reviewing on-line or downloading it from the link above.



LiTech Power makes better battery – Li-ion 42V 20Ah battery pack – Li-ion 43.2V 20Ah battery pack – Li-ion 44.4V 20Ah battery pack
