LiTech Power LiFePO4 12V/12.8V 200Ah Battery Pack

P/N: LRL12200

  • Nominal Voltage: 12.8V
  • Nominal Capacity: 200Ah /2560Wh
  • Voltage Range: 10V~14.6V
  • Max. Continuous Discharge Current: 200A
  • Max. Discharge Peak Current: 400A
  • Communication Protocol: Optional (CANBus/MODBus- RS485/232/UART/bluetooth)
  • Dimension: 482 x 186 x 168mm
  • Weight: 22.5kg ± 500g

$0.00

Available on backorder

Available on backorder

x

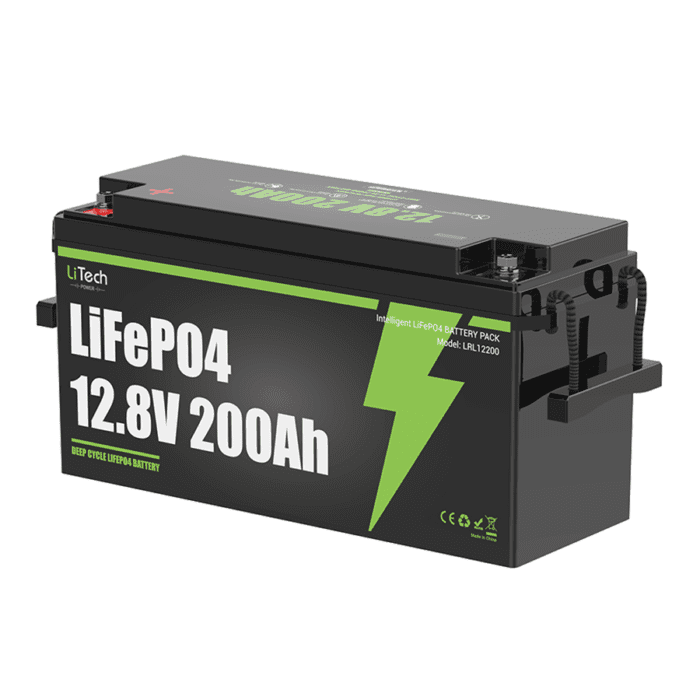

LiTech Power LiFePO4 12V/12.8V 200Ah Battery Pack

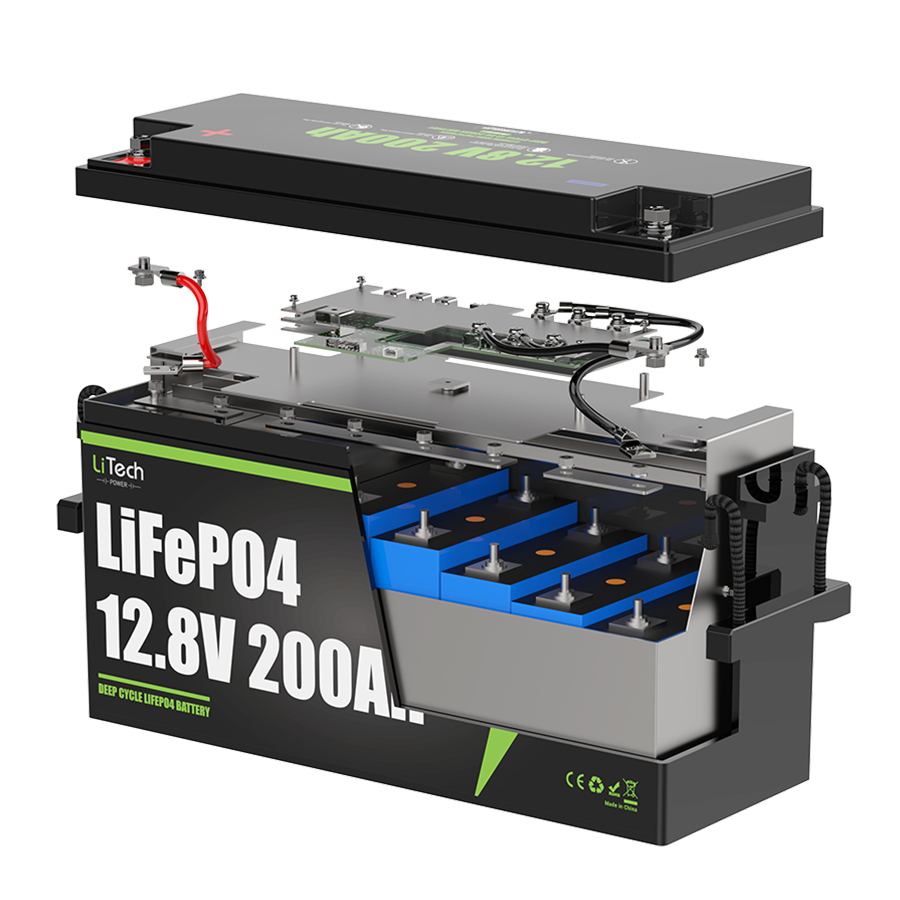

LRL12200 is a high-performance Lithium-Ion Phosphate(LiFePo4) rechargeable Battery with Battery Management System (BMS) integrated, nominal voltage at 12.8V, rated capacity at 200Ah/2960Wh, with 2x temp. sensors for high&low temp. protections, with waterproof ABS casing, with M8 bolt terminals. It is typically designed as drop-in replacement for Lead-Acid / SLA / GEL / AGM batteries, maintenance-free and simple to use – plug&play, supports Daisy-Chain connections, up to 4 in series and multi ones in parallel connections. Optional communication protocols (CANBus, MODBus- RS485/232, UART and bluetooth ) are available.

It is a typically OEM battery pack customized for 12V/12.8V/14V applications, reach out to us if you need some modifications on current design or need a total new custom solution. LiTech develops and produces the core component BMS in-house, with a wide range of off-the-shelf BMS selection, therefor LiTech delivers new development in just a few days. Thanks to its “know-how” experience and strict QC testing procedures, LiTech makes better custom batteries – li-ion batteries & lifepo4 batteries and lot batteries.

The full specification data sheet is available for reviewing on-line or downloading it from the link above.



LiTech Power makes better battery –  LiFePO4 12V 200Ah Battery – LiFePO4 12.8V 200Ah battery pack – LiFePO4 14V 200Ah battery pack.
