LiTech Power LiFePO4 72V/76.8V Battery Pack

P/N: LP7250GB001

  • Nominal Voltage: 76.8V
  • Nominal Capacity: 50Ah/3840Wh
  • Voltage Range: 60V~87.6V
  • Max. Continuous Discharge Current: 50A
  • Max. Discharge Peak Current: 100A
  • Communication Protocol: CANBus, MODBus- RS485/232, UART and Bluetooth
  • Dimension: 400 x 390 x 395 mm
  • Weight: 26kg ± 0.3kg
Voltage
76.8V

$0.00

Available on backorder

Available on backorder

x

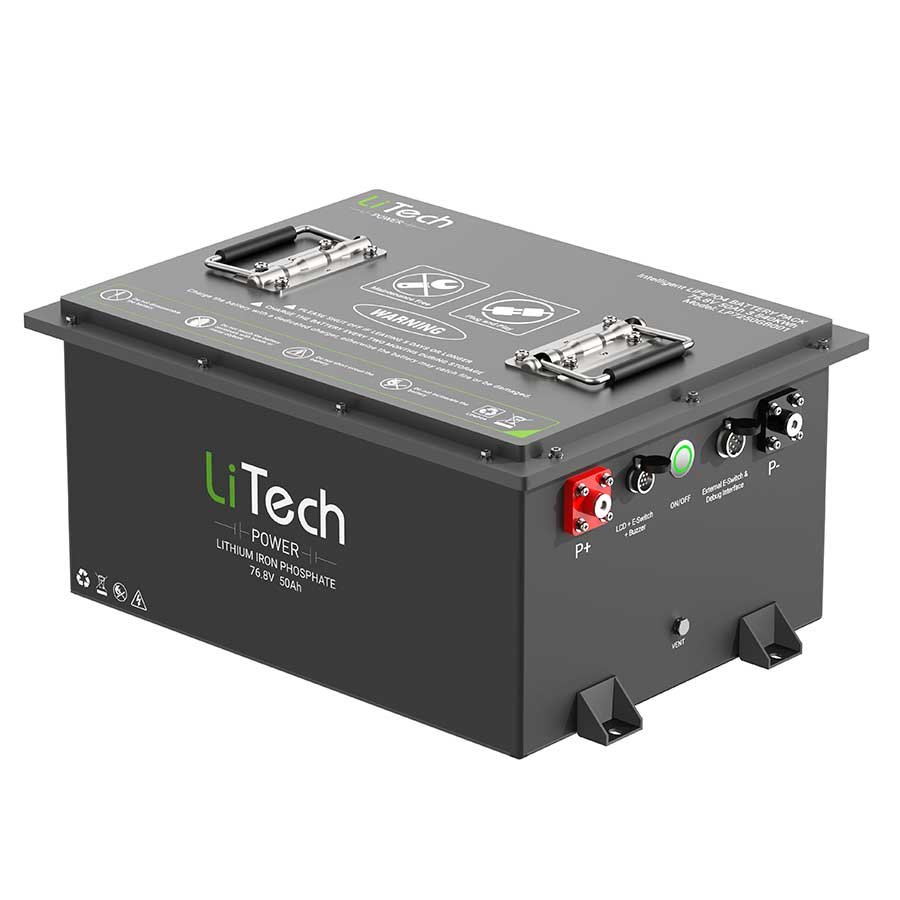

LiTech Power LiFePO4 72V/76.8V 50Ah Battery Pack

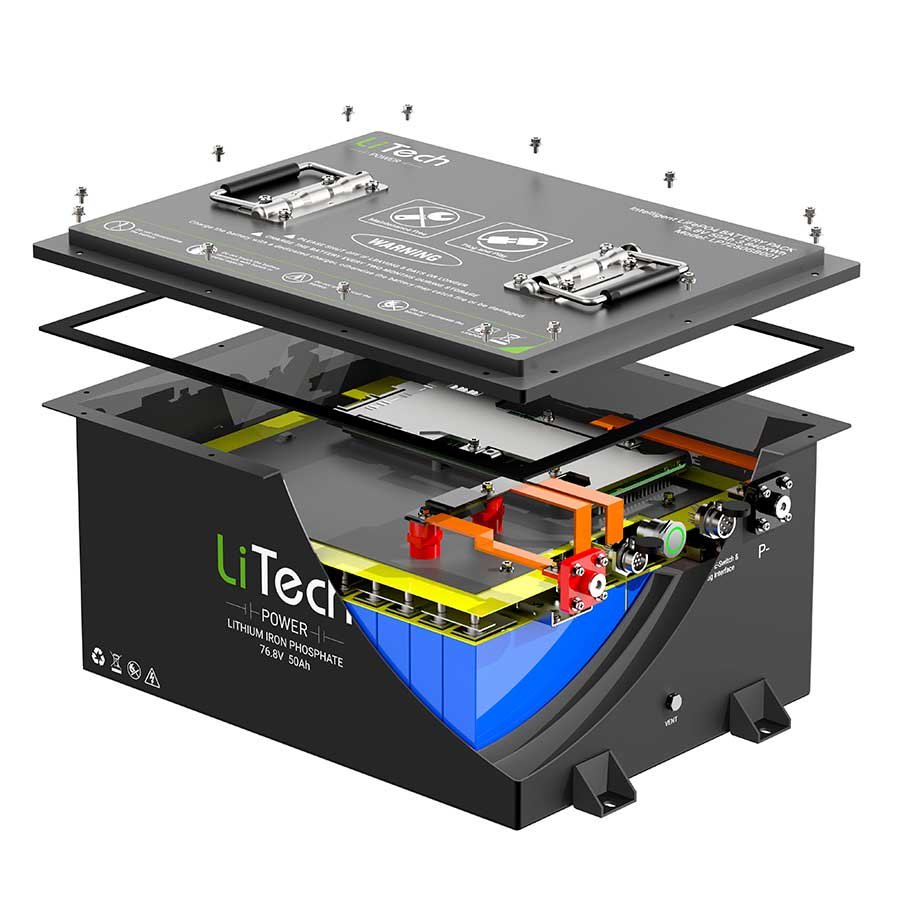

LP7250GB001 is a high-performance Lithium-Ion Phosphate(LiFePo4) rechargeable Battery with Battery Management System (BMS) integrated, nominal voltage at 72V/76.8V, rated capacity at 50Ah/3840Wh, with multi temp. sensors for high&low temp. protections, with IP67 stainless metal casing, with M8 bolt terminals. It is typically designed for golf cart/lift/floor cleaning machine/light vehicle… as drop-in replacement of Lead-Acid / SLA / GEL / AGM batteries, maintenance-fee and simple to use – plug&play, supports Daisy-Chain connections, with communcation protocols (CANBus, MODBus- RS485/232, UART and Bluetooth).

It is a typically OEM battery pack customized for 72V/76.8V/80V applications, reach out to us if you need some modifications on current design or need a total new custom solution. LiTech develops and produces the core component BMS in-house, with a wide range of off-the-shelf BMS selection, therefor LiTech delivers new development in just a few days. Thanks to its “know-how” experience and strict QC testing procedures, LiTech makes better custom batteries – li-ion batteries & lifepo4 batteries and lot batteries.

The full specification data sheet is available for reviewing on-line or downloading it from the link above.



LiTech Power makes better battery – LiFePO4 72V 50Ah Battery – LiFePO4 76.8V 50Ah battery pack – LiFePO4 80V 50Ah battery pack
