P/N: LP1250GB001
- Nominal Voltage: 12.8V
- Nominal Capacity: 50Ah / 640Wh
- Voltage Range: 10.0V~14.6V
- Max. Continuous Discharge Current: 50A
- Max. Discharge Peak Current: 320A
- Communication Protocol: CANBus, MODBus- RS485/232, UART and bluetooth
- Dimension: 282 x 225 x 240 mm
- Weight: 8kg ± 0.3kg
-
P/N: LP2450GB001
- Nominal Voltage: 25.6V
- Nominal Capacity: 50Ah / 1280Wh
- Voltage Range: 20.0V~29.2V
- Max. Continuous Discharge Current: 50A
- Max. Discharge Peak Current: 320A
- Communication Protocol: CANBus, MODBus- RS485/232, UART and bluetooth
- Dimension: 310 x 200 x 210 mm
- Weight: 8kg ± 0.3kg
-
P/N: LP3650GB001
- Nominal Voltage: 38.4V
- Nominal Capacity: 50Ah / 1920Wh
- Voltage Range: 30.0V~43.8V
- Max. Continuous Discharge Current: 50A
- Max. Discharge Peak Current: 320A
- Communication Protocol: CANBus, MODBus- RS485/232, UART and bluetooth
- Dimension: 383 x 337 x 256 mm
- Weight: 26kg ± 0.3kg
-
P/N: LP4850GB001
- Nominal Voltage: 51.2V
- Nominal Capacity: 50Ah/2560Wh
- Voltage Range: 40V~58.4V
- Max. Continuous Discharge Current: 50A
- Max. Discharge Peak Current: 320A
- Communication Protocol: CANBus, MODBus- RS485/232, UART and bluetooth
- Dimension: 458 x 331 x 246 mm
- Weight: 35kg ± 1kg
-
P/N: LP7250GB001
- Nominal Voltage: 76.8V
- Nominal Capacity: 50Ah/3840Wh
- Voltage Range: 60V~87.6V
- Max. Continuous Discharge Current: 50A
- Max. Discharge Peak Current: 100A
- Communication Protocol: CANBus, MODBus- RS485/232, UART and Bluetooth
- Dimension: 450 x 339 x 220 mm
- Weight: 26kg ± 0.3kg
-
P/N: LP18S1P150A150AF001
- Nominal Voltage: 57.6V
- Nominal Capacity: 105Ah/6048Wh
- Voltage Range: 45V~65.7V
- Max. Continuous Discharge Current: 150A
- Max. Discharge Peak Current: 320A
- Communication Protocol: CANBus, MODBus- RS485/232, UART and Bluetooth
- Dimension: 580 x 320 x 290 mm
- Weight: 36kg ± 0.3kg
-
P/N: LP18S1P200A200AF001
- Nominal Voltage: 57.6V
- Nominal Capacity: 160Ah/9216Wh
- Voltage Range: 45V~65.7V
- Max. Continuous Discharge Current: 200A
- Max. Discharge Peak Current: 320A
- Communication Protocol: CANBus, MODBus- RS485/232, UART and Bluetooth
- Dimension: 780 x 320 x 260 mm
- Weight: 58kg ± 0.3kg
-
P/N: LP8050GB001
- Nominal Voltage: 83.2V
- Nominal Capacity: 52Ah/4326.4Wh
- Voltage Range: 65V~94.9V
- Max. Continuous Discharge Current: 50A
- Max. Discharge Peak Current: 100A
- Communication Protocol: CANBus, MODBus- RS485/232, UART and Bluetooth
- Dimension: 450 x 339 x 220 mm
- Weight: 39kg ± 0.3kg

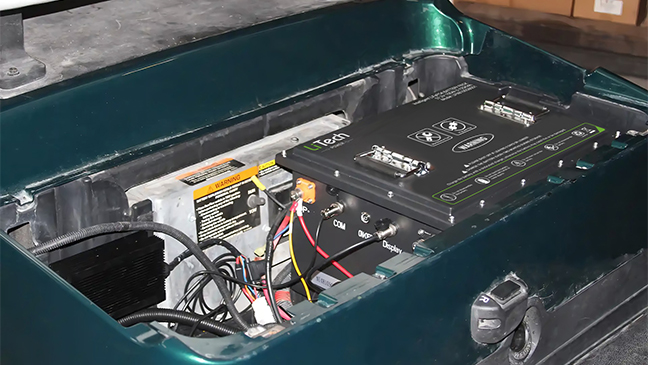

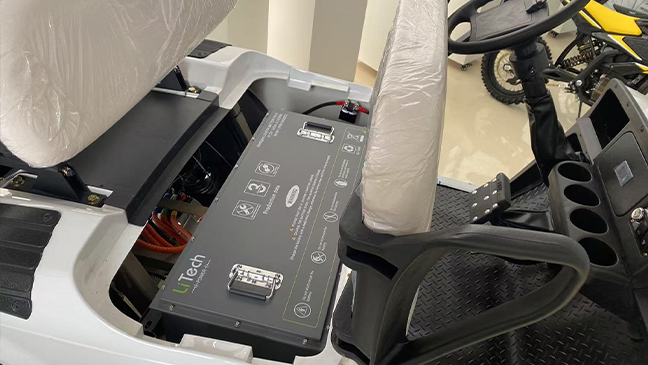

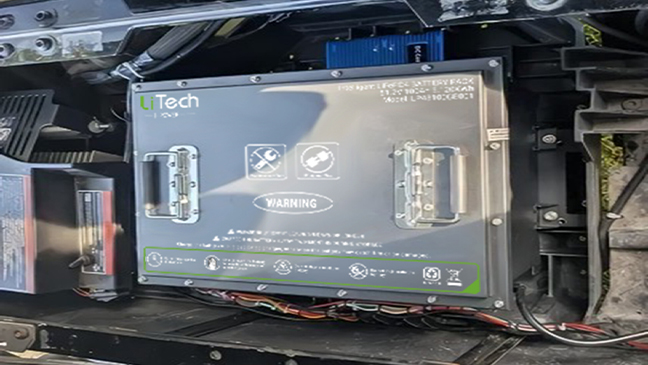

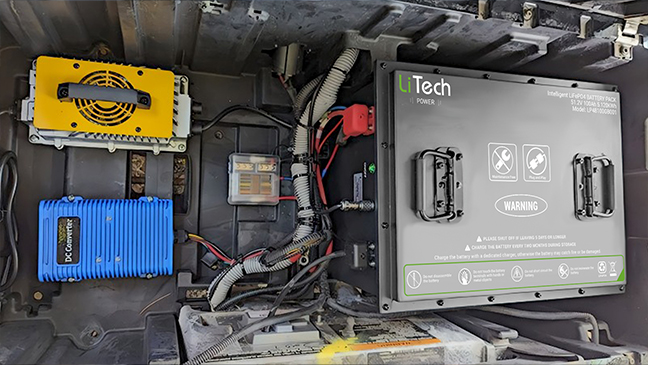

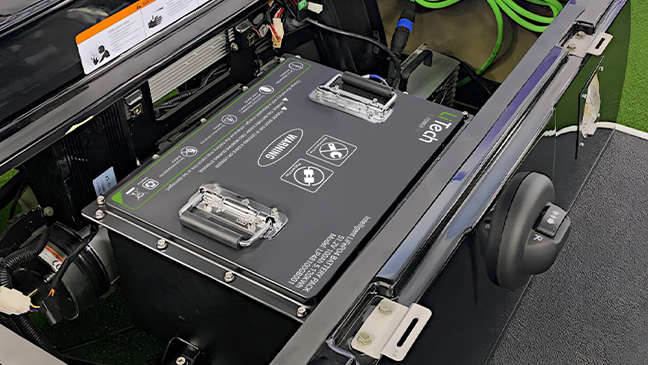

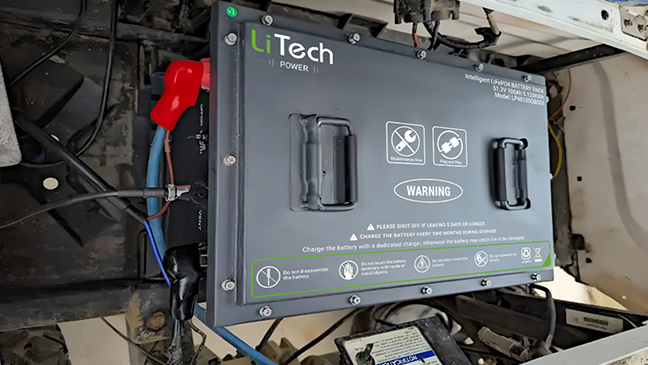

Project Cases
