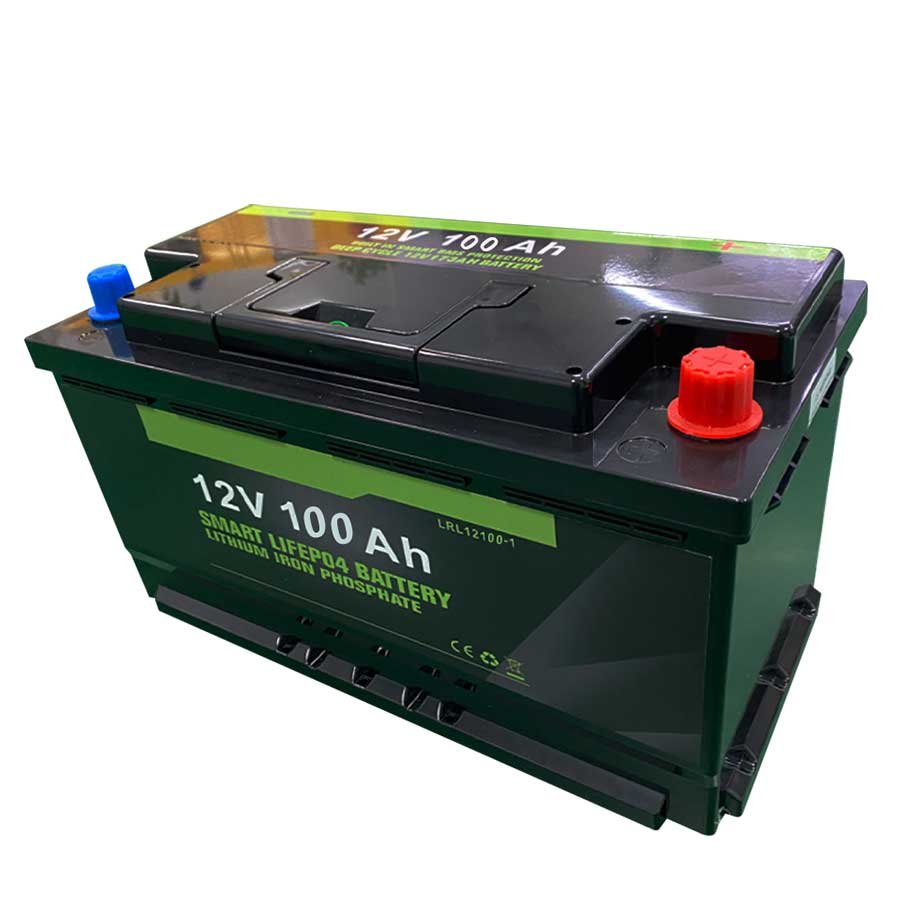

LiTech Power LiFePo4 4S1P 12.8V 100Ah Battery Pack

P/N: LRL121100-1

Nominal Voltage: 12.8V
Nominal Capacity: 100Ah /1280Wh
Voltage Range: 10.0V~14.6V
Max. Continuous Discharge Current: 100A
Max. Discharge Peak Current: 150A
Communication Protocol: Optional (CANBus/MODBus- RS485/232/UART)
With Bluetooth function: Yes

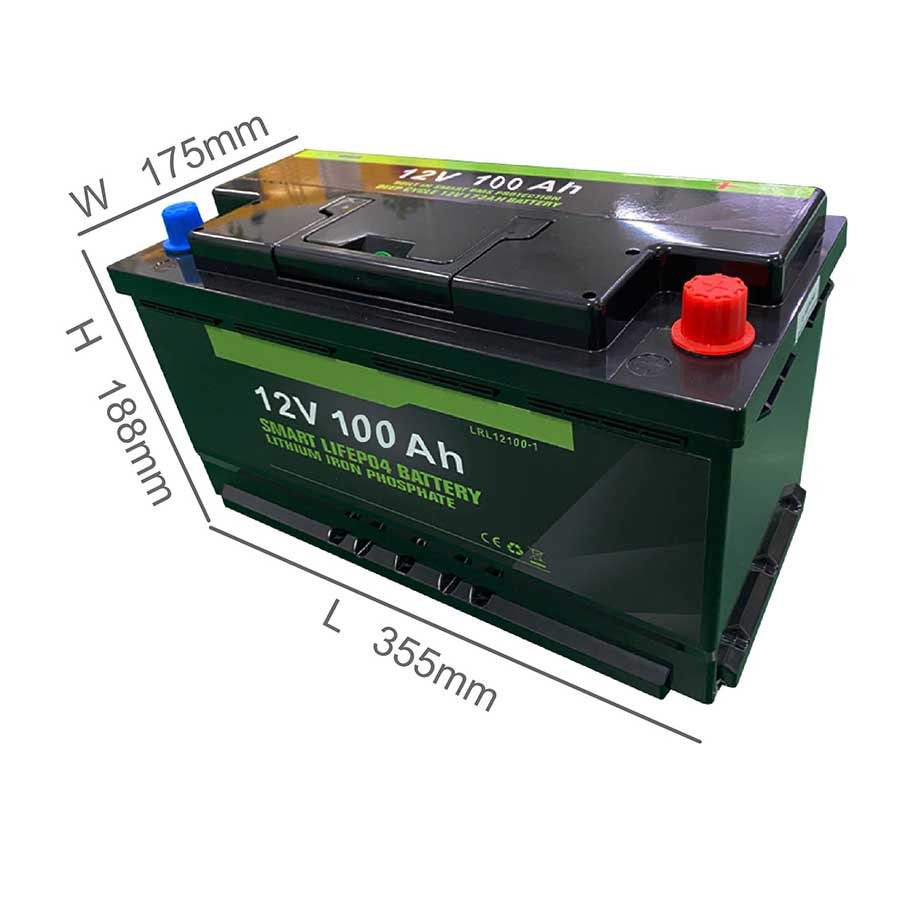

Dimension: 355 x 175 x 188 mm / 13.98 × 6.89 × 7.40 inch
Dimension same as DIN L5(H8)/EN L5(H8)
Weight: 12kg ± 0.5kg

Voltage

12.8V

Capacity

$0.00

Available on backorder

Data Sheet

LiTech Power LiFePo4 4S1P 12.8V 100Ah Battery Pack

LRL12100-1 is a 4S1P Lithium-Ion Phosphate (LiFePo4) rechargeable Battery Pack with Battery Management System integrated, nominal voltage at 12.8V, rated capacity at 100Ah / 1280Wh, with multi temp. sensors for high&low temp. protections, With IP65 waterproof plastic casing, M8 terminal integrated for charge and discharge, with intelligent heating function(optional), with bluetooth function(optional), typically deisgn for 12V solar system.

It is a typically OEM battery pack customized for 10V/12V/14.6V applications, reach out to us if you need some modifications on current design or need a total new custom solution. LiTech develops and produces the core component BMS in-house, with a wide range of off-the-shelf BMS selection, therefor LiTech delivers new development in just a few days. Thanks to its “know-how” experience and strict QC testing procedures, LiTech makes better custom batteries – li-ion batteries & lifepo4 batteries and lot batteries.

The full specification data sheet is available for reviewing on-line or downloading it from the link above.

Battery Size Reference (All Common Battery Sizes)

Category	Size Name / Code	Dimensions (L × W × H, mm/inch)	Typical Voltage	Typical Applications
BCI Group	Group 24	260 × 168 × 215mm / 10.24 × 6.61 × 8.46 inch	12V	Marine, RV, Solar
BCI Group	Group 24F	260 × 168 × 225mm / 10.24 × 6.61 × 8.86 inch	12V	Automotive
BCI Group	Group 27	306 × 173 × 225mm / 12.05 × 6.81 × 8.86 inch	12V	Marine, Solar
BCI Group	Group 31	330 × 173 × 240mm / 12.99 × 6.81 × 9.45 inch	12V	Truck, Marine
BCI Group	Group 34	260 × 173 × 205mm / 10.24 × 6.81 × 8.07 inch	12V	Automotive
BCI Group	Group 35	230 × 175 × 225mm / 9.06 × 6.89 × 8.86 inch	12V	Automotive
BCI Group	Group 51 / 51R	238 × 129 × 223mm / 9.37 × 5.08 × 8.78 inch	12V	Automotive
BCI Group	Group 65	315 × 175 × 190mm / 12.40 × 6.89 × 7.48 inch	12V	Automotive
BCI Group	GC2	260 × 180 × 275mm / 10.24 × 7.09 × 10.83 inch	6V	Golf Cart, RV
BCI Group	8D	527 x 283 x 250mm / 20.75 x 11.13 x 9.8 inch	6V	Golf Cart, RV
DIN / EN	L1 (H4)	207 × 175 × 175mm / 8.15 × 6.89 × 6.89 inch	12V	Small vehicles
DIN / EN	L2 (H5)	242 × 175 × 175mm / 9.53 × 6.89 × 6.89 inch	12V	Passenger vehicles
DIN / EN	L3 (H6)	278 × 175 × 190mm / 10.94 × 6.89 × 7.48 inch	12V	Passenger vehicles
DIN / EN	L4 (H7)	315 × 175 × 190mm / 12.40 × 6.89 × 7.48 inch	12V	SUVs, Vans
DIN / EN	L5 (H8)	353 × 175 × 190mm / 13.90 × 6.89 × 7.48 inch	12V	Vans
DIN / EN	L6 (H9)	393 × 175 × 190mm / 15.47 × 6.89 × 7.48 inch	12V	Commercial vehicles
SLA / VRLA	NP7-12 (7Ah)	151 × 65 × 93mm / 5.94 × 2.56 × 3.66 inch	12V	UPS, Alarm systems
SLA / VRLA	9Ah	151 × 65 × 94mm / 5.94 × 2.56 × 3.70 inch	12V	UPS
SLA / VRLA	12Ah	151 × 98 × 95mm / 5.94 × 3.86 × 3.74 inch	12V	Backup power
SLA / VRLA	18Ah	181 × 77 × 167mm / 7.13 × 3.03 × 6.57 inch	12V	Emergency lighting
SLA / VRLA	26Ah	166 × 175 × 125mm / 6.54 × 6.89 × 4.92 inch	12V	Industrial backup
SLA / VRLA	33Ah	195 × 130 × 155mm / 7.68 × 5.12 × 6.10 inch	12V	UPS
SLA / VRLA	40Ah	197 × 165 × 170mm / 7.76 × 6.50 × 6.69 inch	12V	Backup systems
SLA / VRLA	55Ah	229 × 138 × 210mm / 9.02 × 5.43 × 8.27 inch	12V	Backup power
SLA / VRLA	65Ah	350 × 167 × 180mm / 13.78 × 6.57 × 7.09 inch	12V	Industrial UPS
SLA / VRLA	100Ah	330 × 173 × 215mm / 12.99 × 6.81 × 8.46 inch	12V	Solar, Backup

Note: Battery size standards define physical dimensions and terminal layout only. Capacity and performance depend on battery chemistry and design. Please confirm dimensions and terminal orientation before installation.
