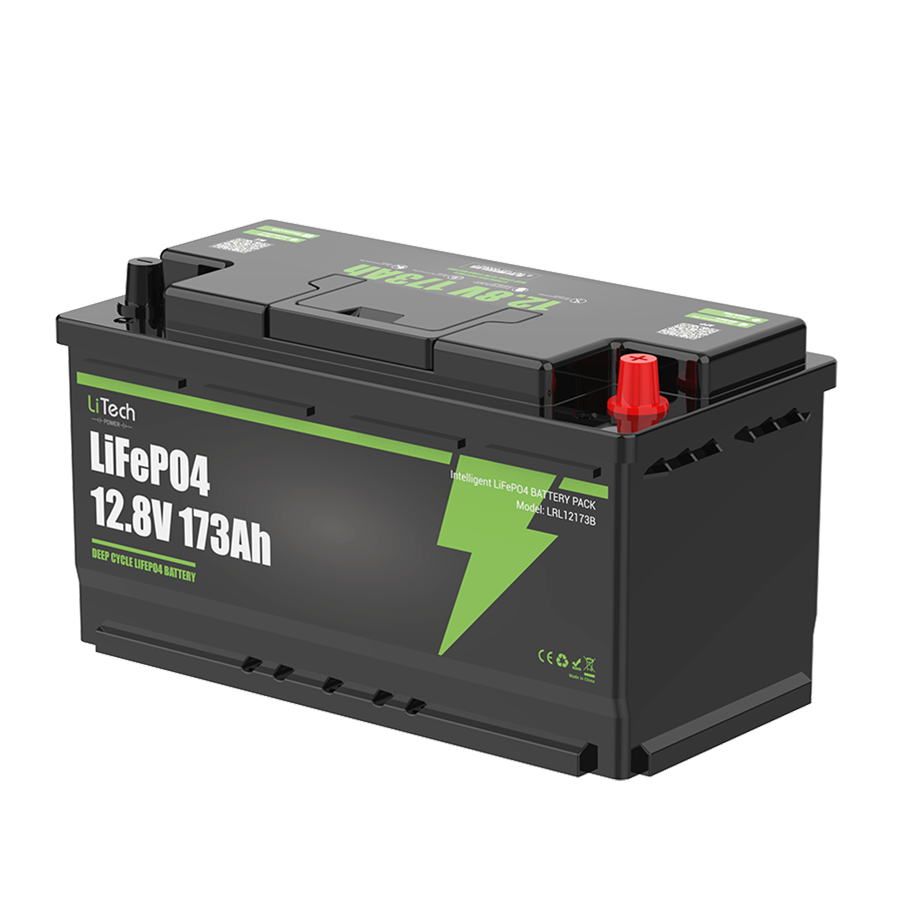

LiTech Power LiFePO4 12.8V 173Ah 4S1P Battery with BlueTooth
LiTech Power LiFePO4 12.8V 173Ah 4S1P Battery with BlueTooth - Image 2
LiTech Power LiFePO4 12.8V 173Ah 4S1P Battery with BlueTooth - Image 3
LiTech Power LiFePO4 12.8V 173Ah 4S1P Battery with BlueTooth - Image 4

LiTech Power LiFePO4 12.8V 173Ah 4S1P Battery with BlueTooth

P/N: LRL12173B

  • Nominal Voltage: 12.8V
  • Nominal Capacity: 173Ah / 2214.4Wh
  • Voltage Range: 10.0V~14.6V
  • Max. Continuous Discharge Current: 100A
  • Max. Discharge Peak Current: 200A
  • Communication Protocol:  Optional (CANBus/MODBus- RS485/232/UART)
  • With Bluetooth function: Yes
  • Dimension: 350 x 174 x 191 mm / 13.78 × 6.85 × 7.52 inch
  • Dimension same as DIN L5(H8)/EN L5(H8)
  • Weight: 15.6kg ± 0.5kg
Voltage
12.8V
Capacity
6Ah
8Ah
12Ah
15Ah
20Ah
30Ah
50Ah
50Ah-B
50Ah-S
60Ah
68Ah
75Ah
100Ah
100Ah-B
100Ah-H
100Ah-S
100Ah-V1*
100Ah-V2*
150Ah
150Ah-B
150Ah-S
173Ah
173Ah-B
173Ah-S
200Ah
200Ah-B
200Ah-S
300Ah
314Ah
400Ah
460Ah
560Ah
628Ah

$0.00

Available on backorder

Available on backorder

x
Data Sheet

LiTech Power LiFePO4 12.8V 173Ah 4S1P Battery with BlueTooth

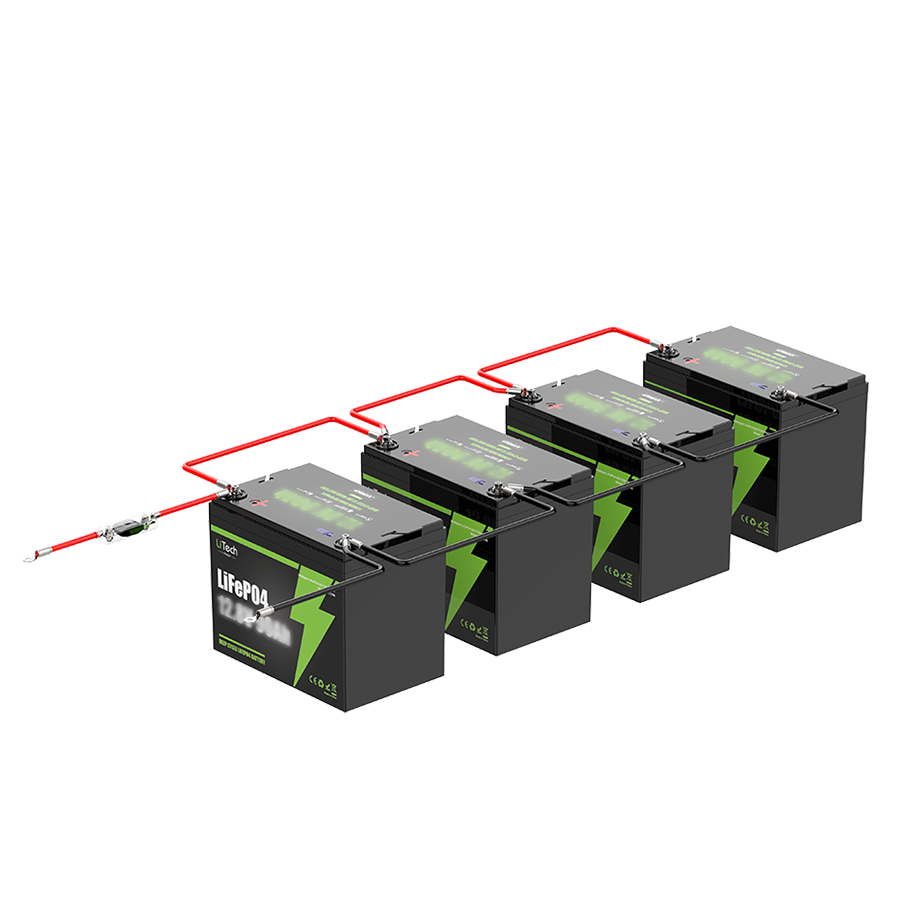

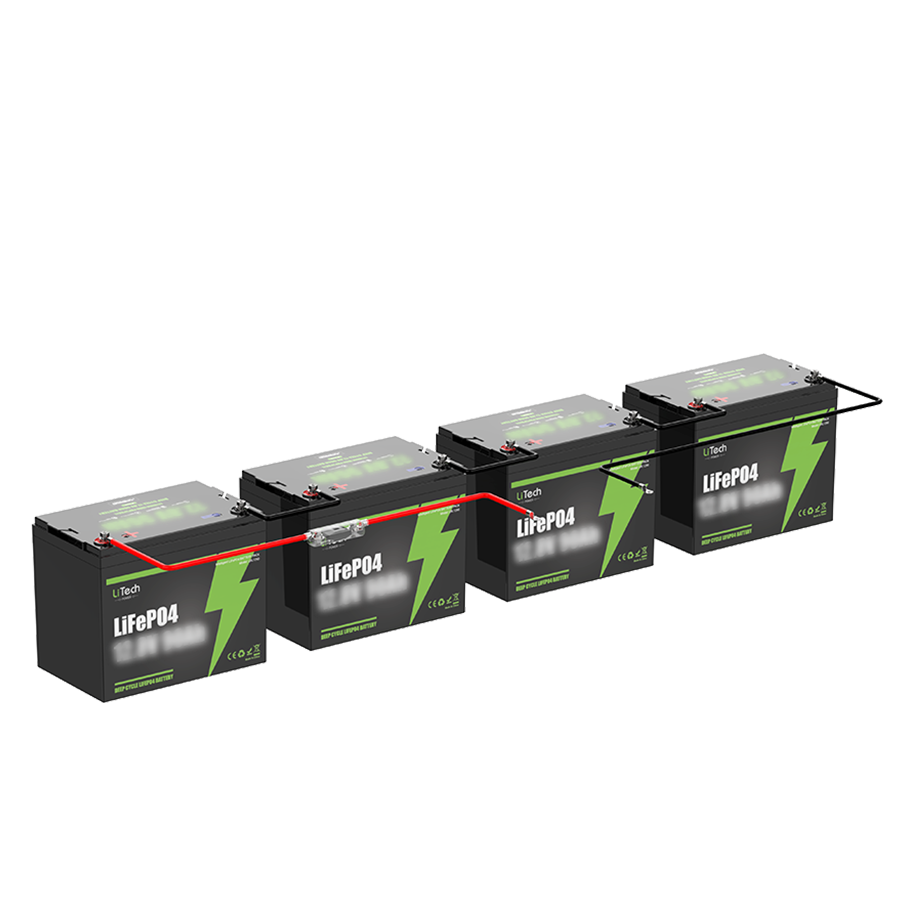

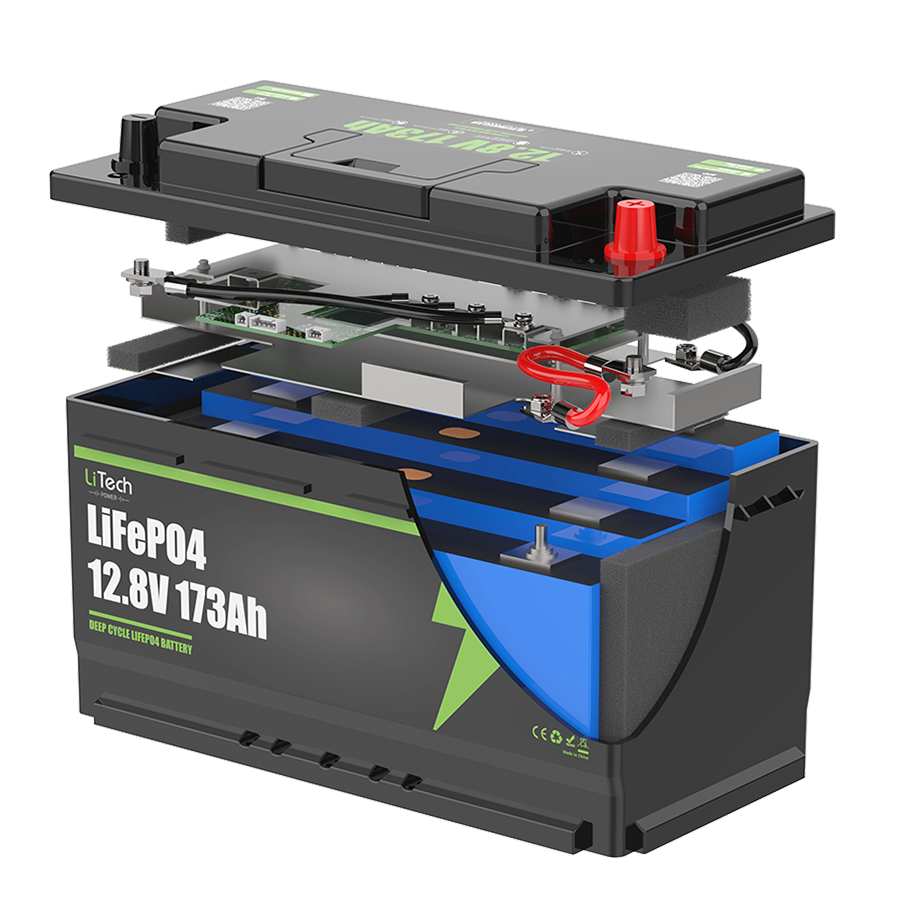

LRL12173B is a high-performance Lithium-Ion Phosphate(LiFePo4) rechargeable Battery with Battery Management System (BMS) integrated, nominal voltage at 12.8V, rated capacity at 173Ah/2214.4Wh, with 2x temp. sensors for high&low temp. protections, with waterproof ABS casing, with M8 bolt terminals and Bluetooth Function. It is typically designed as drop-in replacement for Lead-Acid / SLA / GEL / AGM batteies, maintance-fee and simple to use – plug&play, supports Daisy-Chain connections, upto 4 in series and multi ones in parallel connections. Optional communication protocols (CANBus, MODBus- RS485/232, UART and bluetooth ) are available.

It is a typically OEM battery pack customized for 10V/12V/14.6V applications, reach out to us if you need some modifications on current design or need a total new custom solution. LiTech develops and produces the core component BMS in-house, with a wide range of off-the-shelf BMS selection, therefor LiTech delivers new development in just a few days. Thanks to its “know-how” experience and strict QC testing procedures, LiTech makes better custom batteries – li-ion batteries & lifepo4 batteries and lot batteries.

The full specification data sheet is available for reviewing on-line or downloading it from the link above.

Battery Size Reference (All Common Battery Sizes)

Category Size Name / Code Dimensions (L × W × H, mm/inch) Typical Voltage Typical Applications
BCI Group Group 24 260 × 168 × 215mm / 10.24 × 6.61 × 8.46 inch
 12V Marine, RV, Solar
BCI Group Group 24F 260 × 168 × 225mm / 10.24 × 6.61 × 8.86 inch 12V Automotive
BCI Group Group 27 306 × 173 × 225mm / 12.05 × 6.81 × 8.86 inch 12V Marine, Solar
BCI Group Group 31 330 × 173 × 240mm / 12.99 × 6.81 × 9.45 inch 12V Truck, Marine
BCI Group Group 34 260 × 173 × 205mm / 10.24 × 6.81 × 8.07 inch 12V Automotive
BCI Group Group 35 230 × 175 × 225mm / 9.06 × 6.89 × 8.86 inch 12V Automotive
BCI Group Group 51 / 51R 238 × 129 × 223mm / 9.37 × 5.08 × 8.78 inch 12V Automotive
BCI Group Group 65 315 × 175 × 190mm / 12.40 × 6.89 × 7.48 inch 12V Automotive
BCI Group GC2 260 × 180 × 275mm / 10.24 × 7.09 × 10.83 inch 6V Golf Cart, RV
BCI Group 8D 527 x 283 x 250mm / 20.75 x 11.13 x 9.8 inch
 6V Golf Cart, RV
DIN / EN L1 (H4) 207 × 175 × 175mm / 8.15 × 6.89 × 6.89 inch 12V Small vehicles
DIN / EN L2 (H5) 242 × 175 × 175mm / 9.53 × 6.89 × 6.89 inch 12V Passenger vehicles
DIN / EN L3 (H6) 278 × 175 × 190mm / 10.94 × 6.89 × 7.48 inch 12V Passenger vehicles
DIN / EN L4 (H7) 315 × 175 × 190mm / 12.40 × 6.89 × 7.48 inch 12V SUVs, Vans
DIN / EN L5 (H8) 353 × 175 × 190mm / 13.90 × 6.89 × 7.48 inch 12V Vans
DIN / EN L6 (H9) 393 × 175 × 190mm / 15.47 × 6.89 × 7.48 inch 12V Commercial vehicles
SLA / VRLA NP7-12 (7Ah) 151 × 65 × 93mm / 5.94 × 2.56 × 3.66 inch 12V UPS, Alarm systems
SLA / VRLA 9Ah 151 × 65 × 94mm / 5.94 × 2.56 × 3.70 inch 12V UPS
SLA / VRLA 12Ah 151 × 98 × 95mm / 5.94 × 3.86 × 3.74 inch 12V Backup power
SLA / VRLA 18Ah 181 × 77 × 167mm / 7.13 × 3.03 × 6.57 inch 12V Emergency lighting
SLA / VRLA 26Ah 166 × 175 × 125mm / 6.54 × 6.89 × 4.92 inch 12V Industrial backup
SLA / VRLA 33Ah 195 × 130 × 155mm / 7.68 × 5.12 × 6.10 inch 12V UPS
SLA / VRLA 40Ah 197 × 165 × 170mm / 7.76 × 6.50 × 6.69 inch 12V Backup systems
SLA / VRLA 55Ah 229 × 138 × 210mm / 9.02 × 5.43 × 8.27 inch 12V Backup power
SLA / VRLA 65Ah 350 × 167 × 180mm / 13.78 × 6.57 × 7.09 inch 12V Industrial UPS
SLA / VRLA 100Ah 330 × 173 × 215mm / 12.99 × 6.81 × 8.46 inch 12V Solar, Backup

Note: Battery size standards define physical dimensions and terminal layout only. Capacity and performance depend on battery chemistry and design. Please confirm dimensions and terminal orientation before installation.

LiTech Power makes better battery –  LiFePO4 10V 173Ah Battery – LiFePO4 12.8V 173Ah battery pack – LiFePO4 14.6V 173Ah battery pack.
