P/N: LP72300F001
- Nominal Voltage: 76.8V
- Nominal Capacity: 315Ah/24,192Wh
- Voltage Range: 60V~87.6V
- Max. Continuous Discharge Current: 315A
- Max. Discharge Peak Current: 630A
- Communication Protocol: CANBus, MODBus- RS485/232, UART and bluetooth
- Dimension: 600 x 428 x 552 mm
- Weight: 220kg ± 5kg (not including counterweight)
-
P/N: LP72300F001
- Nominal Voltage: 76.8V
- Nominal Capacity: 315Ah/24,192Wh
- Voltage Range: 60V~87.6V
- Max. Continuous Discharge Current: 315A
- Max. Discharge Peak Current: 630A
- Communication Protocol: CANBus, MODBus- RS485/232, UART and bluetooth
- Dimension: 600 x 428 x 552 mm
- Weight: 220kg ± 5kg (not including counterweight)
-
P/N: LRL12100
- Nominal Voltage: 12.8V
- Nominal Capacity: 100Ah /1280Wh
- Voltage Range: 10V~14.6V
- Max. Continuous Discharge Current: 100A
- Max. Discharge Peak Current: 200A
- Communication Protocol: Optional (CANBus/MODBus- RS485/232/UART/bluetooth)
- Dimension: 260 x 215 x 168mm
- Weight: 12.5kg ± 500g
-
P/N: LRL12100
- Nominal Voltage: 12.8V
- Nominal Capacity: 100Ah /1280Wh
- Voltage Range: 10V~14.6V
- Max. Continuous Discharge Current: 100A
- Max. Discharge Peak Current: 200A
- Communication Protocol: Optional (CANBus/MODBus- RS485/232/UART/bluetooth)
- Dimension: 260 x 215 x 168mm
- Weight: 12.5kg ± 500g
-
P/N: LP24230GB001
- Nominal Voltage: 25.6V
- Nominal Capacity: 230Ah / 5888Wh
- Voltage Range: 20.0V~29.2V
- Max. Continuous Discharge Current: 230A
- Max. Discharge Peak Current: 320A
- Communication Protocol: CANBus, MODBus- RS485/232, UART and bluetooth
- Dimension: 458 x 333 x 256 mm
- Weight: 45kg ± 0.3kg
-
P/N: LP24230GB001
- Nominal Voltage: 25.6V
- Nominal Capacity: 230Ah / 5888Wh
- Voltage Range: 20.0V~29.2V
- Max. Continuous Discharge Current: 230A
- Max. Discharge Peak Current: 320A
- Communication Protocol: CANBus, MODBus- RS485/232, UART and bluetooth
- Dimension: 458 x 333 x 256 mm
- Weight: 45kg ± 0.3kg
-
P/N: LP24230GB001
- Nominal Voltage: 25.6V
- Nominal Capacity: 230Ah / 5888Wh
- Voltage Range: 20.0V~29.2V
- Max. Continuous Discharge Current: 230A
- Max. Discharge Peak Current: 320A
- Communication Protocol: CANBus, MODBus- RS485/232, UART and bluetooth
- Dimension: 458 x 333 x 256 mm
- Weight: 45kg ± 0.3kg
-
P/N: LP24230GB001
- Nominal Voltage: 25.6V
- Nominal Capacity: 230Ah / 5888Wh
- Voltage Range: 20.0V~29.2V
- Max. Continuous Discharge Current: 230A
- Max. Discharge Peak Current: 320A
- Communication Protocol: CANBus, MODBus- RS485/232, UART and bluetooth
- Dimension: 458 x 333 x 256 mm
- Weight: 45kg ± 0.3kg
-
P/N: LP20S14P160A160AL01-C
- Nominal Voltage: 72V
- Nominal Capacity: 58.8Ah/4233.6Wh
- Voltage Range: 54V~84V
- Max. Continuous Discharge Current: 160A
- Max. Discharge Peak Current: 180A
- Communication Protocol: /
- Dimension: 430 X297 X164mm
- Weight: 22,800g ± 300kg
-
P/N: LP20S14P160A160AL01-C
- Nominal Voltage: 72V
- Nominal Capacity: 58.8Ah/4233.6Wh
- Voltage Range: 54V~84V
- Max. Continuous Discharge Current: 160A
- Max. Discharge Peak Current: 180A
- Communication Protocol: /
- Dimension: 430 X297 X164mm
- Weight: 22,800g ± 300kg
-

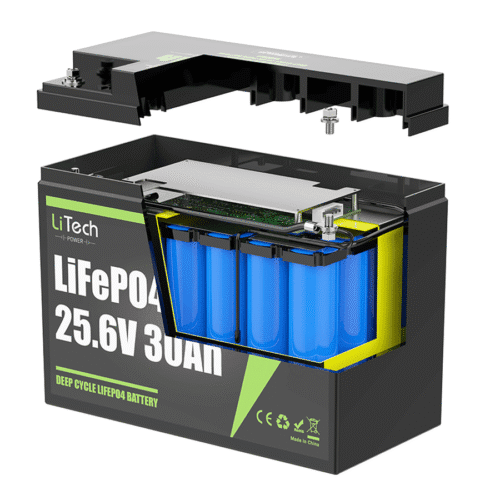

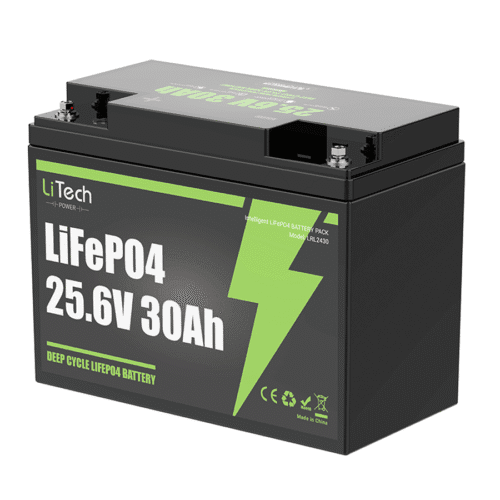

P/N: LRL2430
- Nominal Voltage: 24V
- Nominal Capacity: 30Ah /720Wh
- Voltage Range: 20V~29.2V
- Max. Continuous Discharge Current: 30A
- Max. Discharge Peak Current: 45A
- Communication Protocol: Optional(CANBus, MODBus- RS485/232, UART and bluetooth)
- Dimension: 257 x 200 x 132mm
- Weight: 5.0kg ± 0.2kg
-
P/N: LRL2430
- Nominal Voltage: 24V
- Nominal Capacity: 30Ah /720Wh
- Voltage Range: 20V~29.2V
- Max. Continuous Discharge Current: 30A
- Max. Discharge Peak Current: 45A
- Communication Protocol: Optional(CANBus, MODBus- RS485/232, UART and bluetooth)
- Dimension: 257 x 200 x 132mm
- Weight: 5.0kg ± 0.2kg
